MountingFree Hanging
Quick Jump:
Technical Specifications

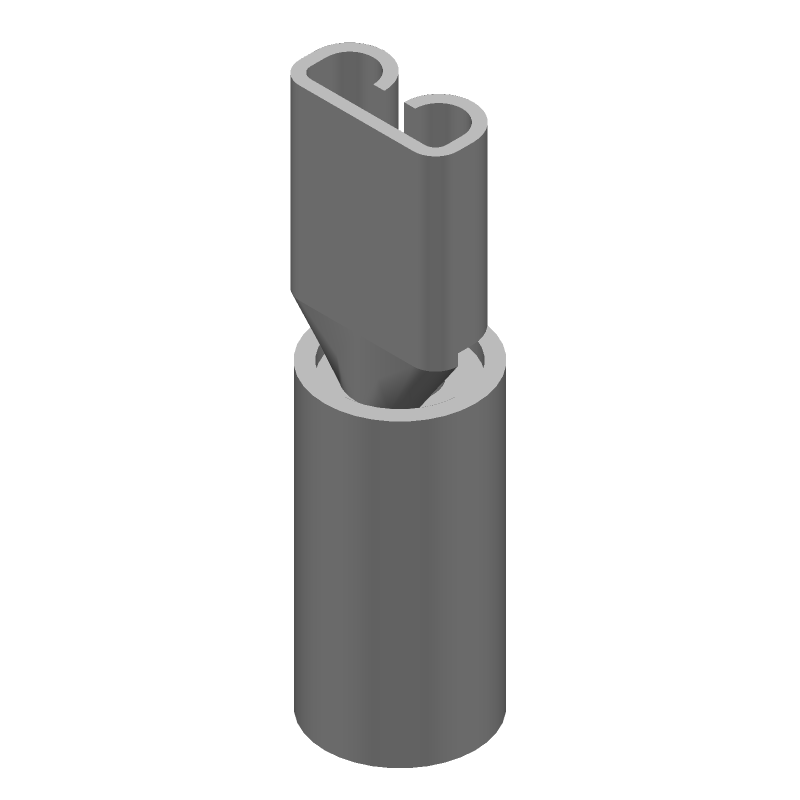

TE Connectivity 9-160479-5 technical specifications.
General
| Color | Blue |
| Contact Material | Bronze |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Diameter | 4.3mm |
| Insulation Material | Nylon |
| Lead Free | Not Applicable |
| Length | 21.8mm |
| Material | Bronze |
| Mating Tab Width | 4.8mm |
| Mount | Free Hanging |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| RoHS Compliant | Yes |
| Series | Faston, PIDG |
| Termination | Receptacle |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 9-160479-5 Datasheet
Download the complete datasheet for TE Connectivity 9-160479-5 to view detailed technical specifications.
