5-position, 1-row right-angle header assembly with a 2.5mm pitch. Features copper alloy contacts with gold plating, a thermoplastic insulator, and a black housing. Rated for 30V and a maximum current of 7A, operating between -20°C and 80°C. Through-hole mount with solder termination and PCB mount retention. Compliant with RoHS and ELV directives, with a UL94 V-0 flammability rating.
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 9-1612503-1 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Max Current Rating | 7A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 90 |
| Packaging | Tray |
| PCB Mount Retention | With |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Termination | Solder |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 9-1612503-1 Datasheet
Download the complete datasheet for TE Connectivity 9-1612503-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

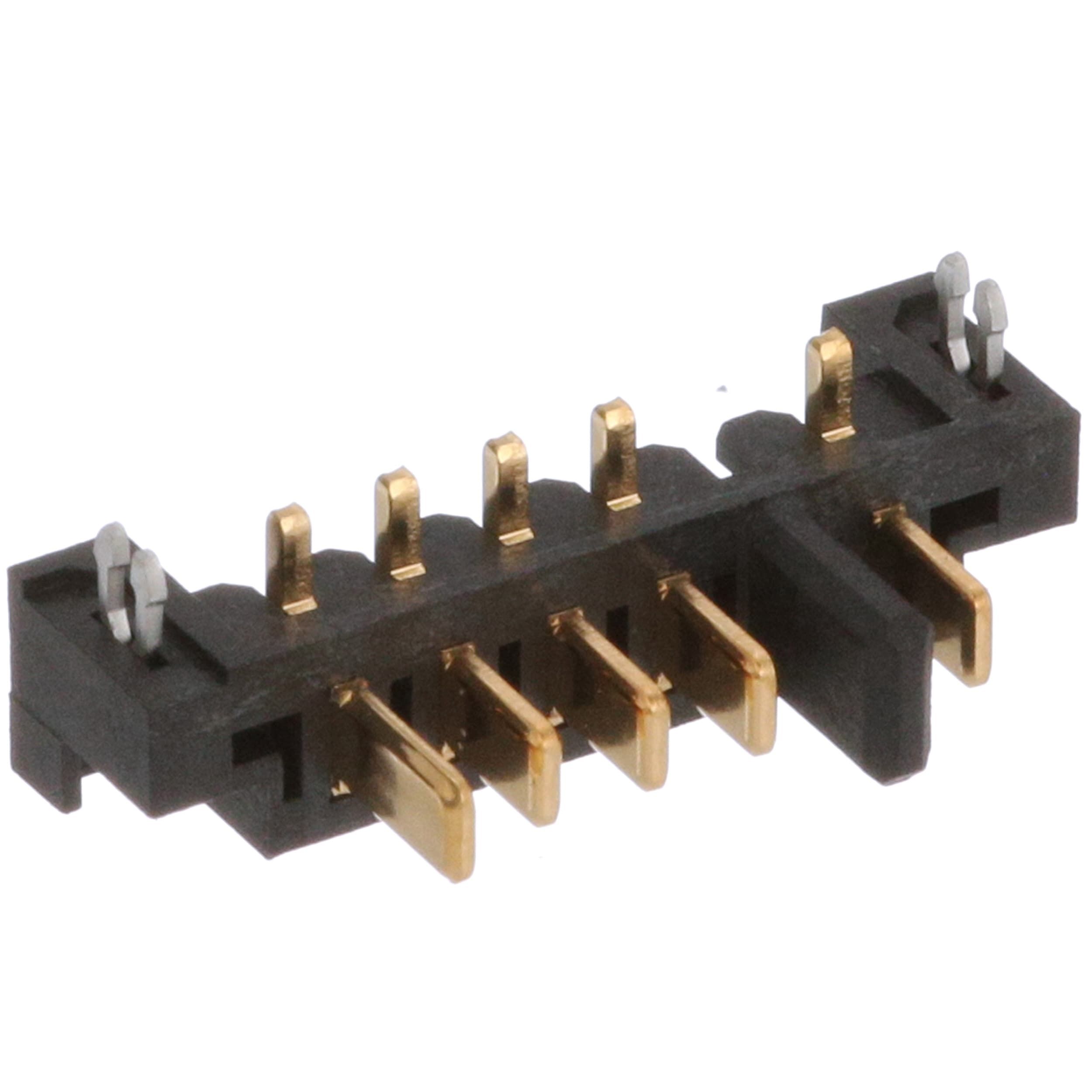

Product Images
