9-215460-0

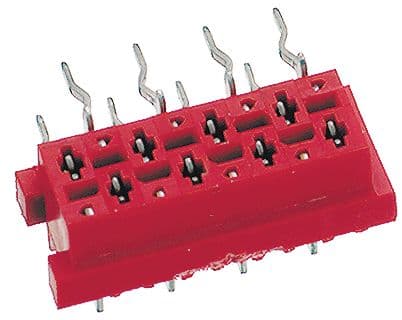

20 Pos 2 Row 1.5A Receptacle Header, 0.05" Pitch, Right Angle, Through Hole

20-position, 2-row right-angle receptacle with a 0.05-inch pitch. Features a 1.5A contact current rating and tin-plated bronze female contacts. Constructed with PBT insulation and a red polyester housing, this shrouded connector system operates at 100V DC and 230V AC, with a maximum operating temperature of 105°C. Through-hole termination and UL94 V-0 flammability rating ensure reliable board-to-board connectivity.

Voltage Rating230V

Current Rating1.5A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 9-215460-0 technical specifications.

General

Board Standoff	No (Without)
Color	Red
Connector System	Board-to-Board
Contact Current Rating	1.5A
Contact Finish - Mating	TIN
Contact Gender	Female
Contact Material	Bronze
Contact Plating	Tin
Contact Post Length	0.122inch
Contact Type	Forked
Current Rating	1.5A
Depth	5.3mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	0.23inch
Housing Color	Red
Insulation Color	Red
Insulation Material	PBT
Lead Length	3.0988mm
Length	27.4mm
Material	Polyester
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Mating Retention	No (Without)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	20
Number of Positions	20
Number of Rows	2
Operating Supply Voltage	100V
Orientation	Right Angle
Package Quantity	2500
Packaging	Box
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Right Angle
Pitch	0.05inch
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Micro-MaTch
Shrouded	Yes (With)
Termination	Through Hole
Voltage Rating	230V
DC Rated Voltage	100V
Width	27.4mm
