917784-1

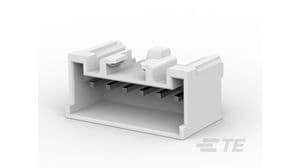

6 Pos 2.5mm Shrouded Header, Straight, Thru-Hole, 3A

6-position shrouded header with 2.5mm pitch, straight male pin contacts, and solder termination. Features a 3A current rating, 50V AC/5.05kV DC voltage rating, and brass contacts with tin plating. This through-hole mounted connector offers mating alignment and retention, with a vertical PCB mounting orientation. Operating temperature range from -22°C to 221°C, UL94 V-0 flammability rating, and RoHS compliant.

Voltage Rating50V

Current Rating3A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 917784-1 technical specifications.

General

Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	3A
Contact Material	Brass
Contact Mating Length	0.18inch
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Style	Straight
Contact Type	Male Pin
Current Rating	3A
Depth	8.2mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	9.8mm
Housing Color	Natural
Length	17.5mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Max Voltage Rating (AC)	50V
Max Voltage Rating (DC)	5.05kV
Mount	Through Hole
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Orientation	Straight
Package Quantity	150
Packaging	Bag
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	2.5mm
Plating Thickness	0.8um
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	2.5 mm System
Strain Relief	No (Without)
Tail Length	3.2mm
Termination	Solder
Underplate Material	Copper
Voltage Rating	50V
