917788-1

10 Pos 2.5mm Pitch Shrouded Header, Vertical, Solder, 3A

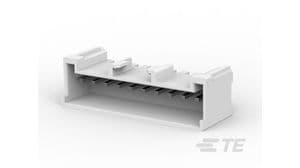

10-position shrouded header for wire-to-board applications. Features straight male pin contacts with a 2.5mm pitch, 3A current rating, and tin plating over brass. Designed for vertical through-hole mounting with a 9.8mm height and 27.5mm length. Offers mating alignment and retention, with a mated stacking height of 13.7mm. Constructed with nylon insulation and a natural housing color, rated UL94 V-0 for flammability.

Voltage Rating50V

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 917788-1 technical specifications.

General

Connector System	Wire-to-Board
Contact Current Rating	3A
Contact Finish - Mating	TIN
Contact Material	Brass
Contact Mating Length	0.18inch
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Square
Contact Style	Straight
Contact Type	Male Pin
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	9.8mm
Housing Color	Natural
Insulation Color	Natural
Insulation Material	Nylon
Length	27.5mm
Mated Stacking Heights	13.7mm
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Mount	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Rows	1
Orientation	Vertical
Package Quantity	100
Packaging	Bag
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
PCB Thickness	0.063inch
Pitch	2.5mm
Plating Thickness	0.8um
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Signal Double Lock
Strain Relief	No (Without)
Tail Length	3.2mm
Termination	Solder
Underplate Material	Copper
Voltage Rating	50V
