1-position, straight, male receptacle housing for 6.35mm tab width contacts. Constructed from natural/beige nylon with a UL94 V-2 flammability rating. Features quick connect termination and free-hanging mounting. Designed for 1 circuit and 1 contact, with mating retention.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 925324-2 technical specifications.
General
Body Material
Nylon
Color
Natural, Beige
Contact Gender
Male
Depth
24.1mm
ELV
Compliant
Flammability Rating
UL94 V-2
Gender
Receptacle
Housing Color
Natural
Lead Free
Not Applicable
Length
0.95inch
Material
Nylon
Mating Retention
Yes (With)
Mount
Free Hanging
Number of Circuits
1
Number of Contacts
1
Number of Positions
1
Number of Rows
1
Orientation
Straight
Package Quantity
3000
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Fastin-Faston
Tab Width
6.35mm
Termination
Quick Connect
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 925324-2 Datasheet
Download the complete datasheet for TE Connectivity 925324-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

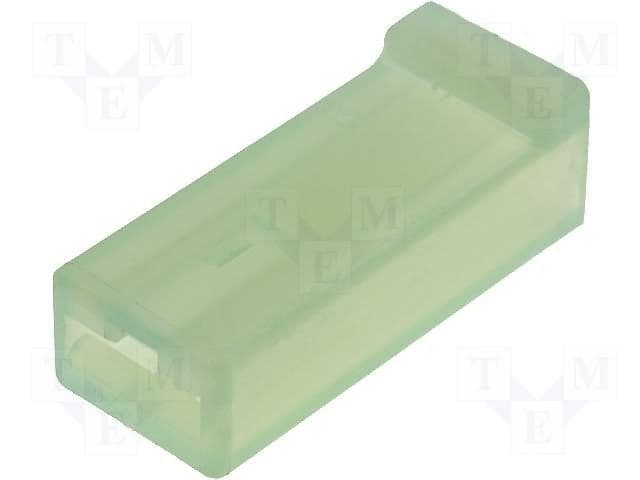

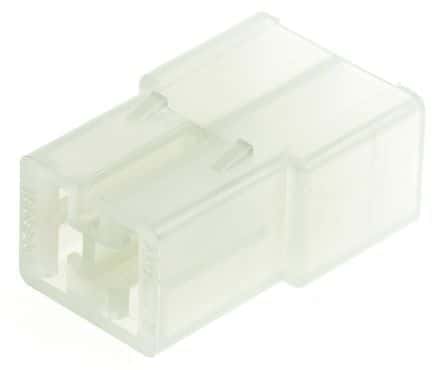

Product Images
