Assembly tool for power applications, featuring a 3.56mm pin diameter and 14AWG maximum wire gauge. This male, straight, unshielded component offers a 28A current rating and 250V voltage rating, with a tin-plated bronze contact material. Designed for crimp termination, it operates within a temperature range of -67°C to 221°C and is RoHS compliant.
Voltage Rating250V
Current Rating28A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 925660-2 technical specifications.
General
Circuit Application
Power
Contact Current Rating
17A
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Tin
Contact Type
Signal
Current Rating
28A
Depth
5mm
ELV
Compliant
Gender
Male
Height
5.15mm
Insulation Diameter
4.5mm
Length
25.5mm
Material
Bronze
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Number of Rows
1
Orientation
Straight
Package Quantity
500
Packaging
Box
Pin Diameter
3.56mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
Width
25mm
Wire Gauge (Max)
14AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
14AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 925660-2 Datasheet
Download the complete datasheet for TE Connectivity 925660-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

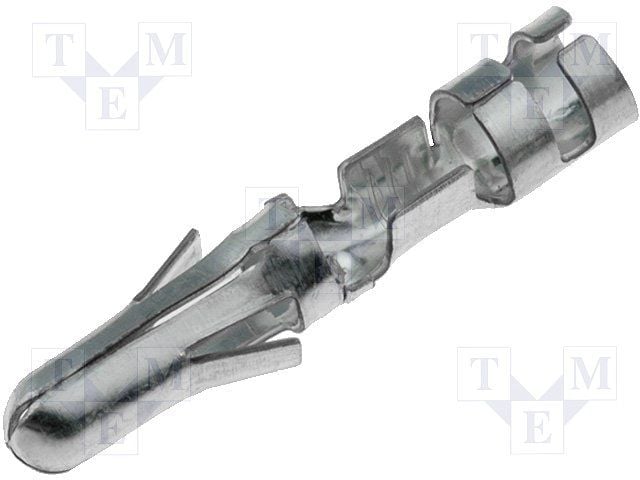

Product Images
