Technical Specifications
TE Connectivity 927854-8 technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Silver |
| ELV | Compliant |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.122inch |
| Lead Free | Not Applicable |
| Length | 0.878inch |
| Material | Bronze |
| Mating Tab Width | 6.35mm |
| Mount | Free Hanging |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Plating | Silver |
| RoHS Compliant | Yes |
| Series | Mark I |
| Tab Thickness | 0.032inch |
| Tab Width | 0.25inch |
| Termination | Receptacle |
| Wire Gauge (Max) | 17AWG |
| Wire Gauge (Min) | 5AWG |
| Wire/Cable Diameter | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 927854-8 Datasheet
Download the complete datasheet for TE Connectivity 927854-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

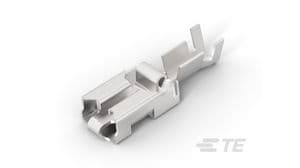

Product Images
