TE Connectivity
963293-1
1-Position, Straight, Female, Silicone, Press-Fit, IP57, 2.7mm Wire Diameter, Bulk Pack, 50000 Units
This is a 1-position, straight, female connector with a silicone material and press-fit termination. It has an IP57 rating and a wire/cable diameter of 2.7mm. The connector is packaged in bulk with 50,000 units per package. It is compliant with RoHS regulations and has a maximum operating temperature of 130°C and a minimum operating temperature of -40°C.
Quick Jump:
Technical Specifications
TE Connectivity 963293-1 technical specifications.
General
| Color | Brown |
| ELV | Compliant |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Material | Silicone |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP57 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MCP |
| Termination | Press-Fit |
| Wire/Cable Diameter | 2.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 963293-1 Datasheet
Download the complete datasheet for TE Connectivity 963293-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

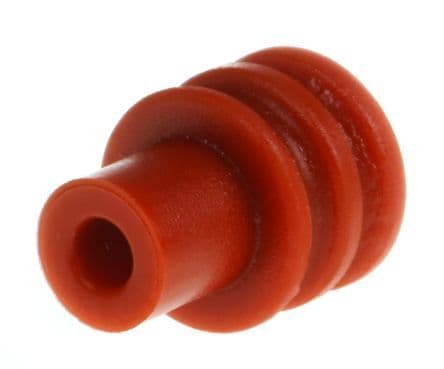

Product Images
