Technical Specifications
TE Connectivity 963711-1 technical specifications.
General
| Contact Material | Copper Alloy, Tin, Bronze, Copper |
| Contact Plating | Tin |
| Contact Type | Signal |
| ELV | Compliant |
| Gender | Female |
| Lead Free | Not Applicable |
| Mating Tab Width | 0.063inch |
| Max Operating Temperature | 248°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Positions | 1 |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Box |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | Micro-Timer II |
| Shielding | Unshielded |
| Termination | Crimp |
| Wire Gauge (Max) | 17AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 963711-1 Datasheet
Download the complete datasheet for TE Connectivity 963711-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

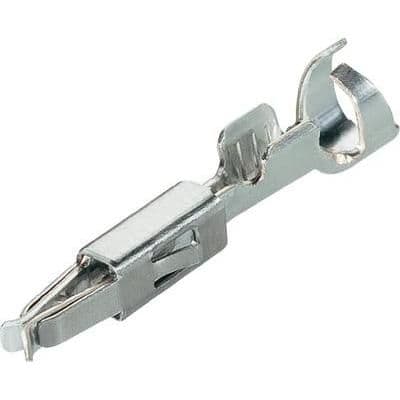

Product Images
