Female, straight orientation, power contact type terminal for 0.75mm² wire gauge (20-18AWG). Features a tin contact plating and a 14.6mm length with a 3.5mm depth and 3.4mm height. This crimp termination component is sealable and RoHS compliant, supplied in a strip packaging of 36000 units.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 965906-1 technical specifications.
General
Contact Plating
Tin
Contact Type
Power
Depth
3.5mm
ELV
Compliant
Gender
Female
Height
3.4mm
Insulation Diameter
-1.9mm
Lead Free
Lead Free
Length
14.6mm
Mount
Cable
Number of Positions
1
Orientation
Straight
Package Quantity
36000
Packaging
Strip
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
Yes (With)
Series
Micro Quadlok
Shielding
Unshielded
Termination
Crimp
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
20AWG
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 965906-1 Datasheet
Download the complete datasheet for TE Connectivity 965906-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

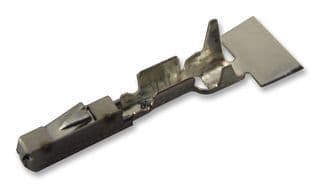

Product Images
