18-position, right-angle male power connector with 3 rows and 5mm pitch. Features tin contact plating, Solder termination, and UL94 HB flammability rating. Operates within a -40°C to 212°C temperature range. Designed for through-hole mounting with a 46mm length and 0.791-inch width. RoHS and ELV compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 966140-1 technical specifications.
General
Circuit Application
Signal
Color
Black
Contact Plating
Tin
ELV
Compliant
Flammability Rating
UL94 HB
Gender
Male
Length
46mm
Max Operating Temperature
212°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Contacts
18
Number of Positions
18
Number of Rows
3
Number of Signal Positions
18
Orientation
Right Angle
Package Quantity
112
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
Pitch
3.5mm
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Shielding
Unshielded
Tab Thickness
0.8mm
Tab Width
2.8mm
Termination
Solder
Width
0.791inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 966140-1 Datasheet
Download the complete datasheet for TE Connectivity 966140-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

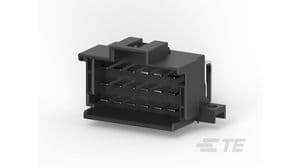

Product Images
