TE Connectivity
ADE0204
Switch DIP OFF ON SPST 2 Extended Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
TE Connectivity ADE0204 technical specifications.
General
Actuator Length
1mm
Actuator Material
Polyamide
Actuator Type
SLIDE
Contact Current Rating
100mA
Contact Material
Gold, Copper Alloy
Contact Plating
Nickel, Gold
Electrical Life
1000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
24V
Mount
PCB, Through Hole
Number of Circuits
2
Number of Positions
2
Orientation
Straight
Packaging
Rail/Tube
RoHS Compliant
Yes
Terminal Pitch
2.54mm
Termination
PC Pins
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
TE Connectivity ADE0204 Datasheet
Download the complete datasheet for TE Connectivity ADE0204 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

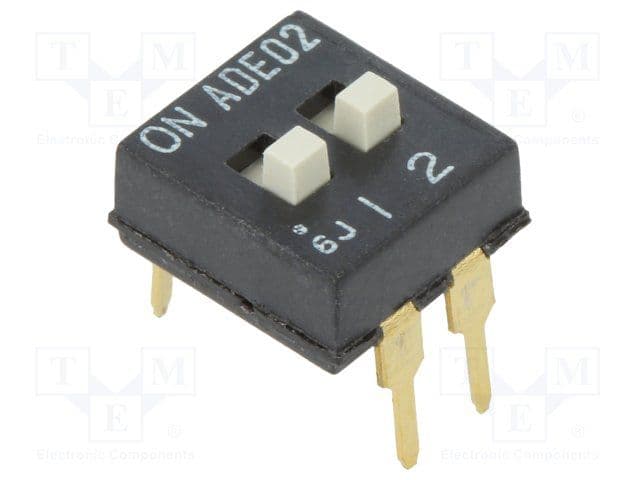

Product Images
