Transparent shield terminal for cable mounting, featuring a 10.8mm inside diameter and 4mm wire/cable diameter. Constructed with a polyolefin body and insulation, it utilizes copper contacts with tin plating for reliable solder termination. Operating within a temperature range of -55°C to 125°C, this component offers a 35.5mm length and is ELV compliant.
Package125
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity B-155-11 technical specifications.
General
Body Material
Polyolefin
Package/Case
125
Color
Clear
Contact Material
Copper
Contact Plating
Tin
ELV
Compliant
Government Qualified
No
Inside Diameter
10.8mm
Insulation Material
PO
Length
1.4inch
Material
Polyolefin
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Cable
Package Quantity
100
Reach SVHC Compliant
Unknown
Series
SolderSleeve B-155
Termination
Solder
Wire/Cable Diameter
4mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity B-155-11 Datasheet
Download the complete datasheet for TE Connectivity B-155-11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

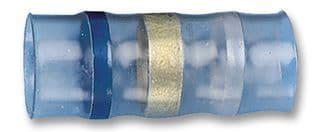

Product Images
