TE Connectivity
CPF0402B15KE
TE Connectivity CPF Series Precision Thin Film Surface Mount Resistor 0402 Case 15000 0.1% 0.063W 25ppm/C
Package0402
Resistance15kR
MountingSurface Mount
Quick Jump:
Technical Specifications
TE Connectivity CPF0402B15KE technical specifications.
General
| Package/Case | 0402 |
| Depth | 0.5mm |
| Height | 0.3mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Resistance | 15kR |
| RoHS Compliant | Yes |
| Series | CPF |
| Technology | THIN FILM |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity CPF0402B15KE Datasheet
Download the complete datasheet for TE Connectivity CPF0402B15KE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

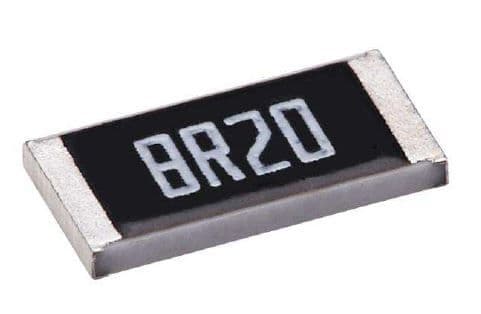

Product Images
