Technical Specifications
TE Connectivity D-101-00 technical specifications.
General
Color
Blue, Clear
ELV
Non-Compliant
Insulation Color
Blue
Insulation Material
PVDF
Length
17.5mm
Material
PVDF, Polyvinylidene
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Cable
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SolderSleeve D-101
Termination
Solder
Wire/Cable Diameter
2.5mm
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity D-101-00 Datasheet
Download the complete datasheet for TE Connectivity D-101-00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

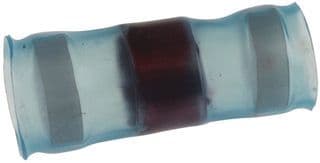

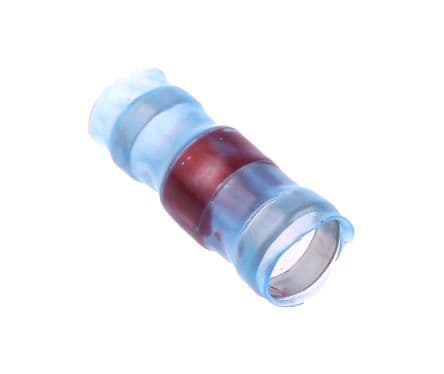

Product Images
