Insulated connector terminals with a transparent clear polyvinylidene fluoride insulation material. Featuring a straight orientation and crimp termination, these terminals accommodate 26AWG to 20AWG wire gauges. The component offers a maximum operating temperature of 302°C and a minimum of -85°C, with a tin plating and a 2.9mm inside diameter. Supplied in a bag of 100 units, this RoHS compliant product is designed for cable mounting with two wire entries.
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity D-436-36-COLD technical specifications.
General
| Color | Red |
| ELV | Compliant |
| Government Qualified | No |
| Heavy Duty | No |
| Inside Diameter | 2.9mm |
| Insulation | Insulated |
| Insulation Material | Polyvinylidene |
| Length | 36.8mm |
| Max Operating Temperature | 302°C |
| Min Operating Temperature | -85°C |
| Mount | Cable |
| Number of Wire Entries | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 26AWG |
| Wire/Cable Gauge | 26AWG |
| Wire/Cable Type | Insulated Wire |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity D-436-36-COLD Datasheet
Download the complete datasheet for TE Connectivity D-436-36-COLD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

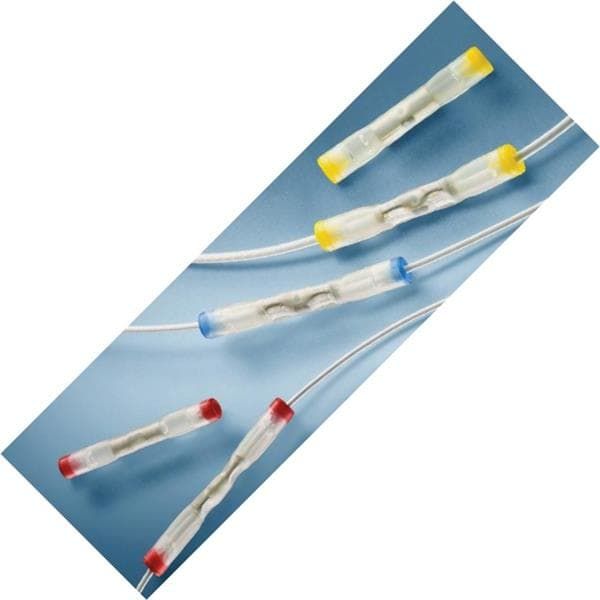

Product Images
