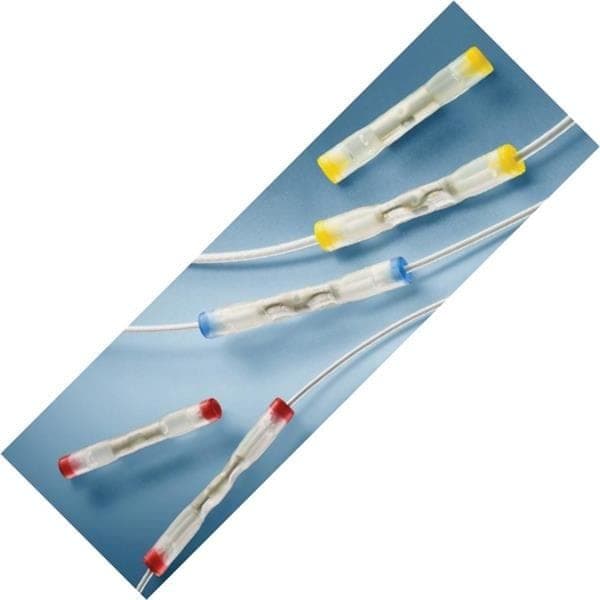

This 37.7mm insulated terminal features a tin plated copper contact material and is designed for use with 14AWG wire. It is compliant with RoHS regulations and has a maximum operating temperature of 302°C and a minimum operating temperature of -85°C. The terminal is packaged in a bag with 100 units per package and is available with a yellow color. It is suitable for use in applications where a crimp termination is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity D-436-38-COLD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| ELV | Compliant |
| Government Qualified | No |
| Insulation | Insulated |
| Insulation Material | Polyvinylidene |
| Length | 37.7mm |
| Max Operating Temperature | 302°C |
| Min Operating Temperature | -85°C |
| Mount | Cable |
| Number of Wire Entries | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bag |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 14AWG |
| Wire/Cable Type | Insulated Wire |
| RoHS | Compliant |
