4-position, 2-row female socket combination line connector for wire-to-wire applications. Features a grey housing, UL94 V-0 flammability rating, and operates within a -55°C to 125°C temperature range. This polarized, sealable, and serviceable connector utilizes crimp termination and is designed for free-hanging mounting.
MountingFree Hanging
PolarityYes
Quick Jump:
Technical Specifications
TE Connectivity DT06-4S technical specifications.
General
| Color | Grey |
| Connector System | Wire-to-Wire |
| Contact Type | Female Socket |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 30.94mm |
| Housing Color | Grey |
| Hybrid Connector | No |
| Lead Free | Lead Free |
| Length | 0.716inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Pitch | 0.175inch |
| Polarized | Yes |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | Yes (With) |
| Series | DT |
| Serviceable | Yes |
| Strain Relief | Add By Accessory |
| Termination | Crimp |
| Width | 18.39mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity DT06-4S Datasheet
Download the complete datasheet for TE Connectivity DT06-4S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

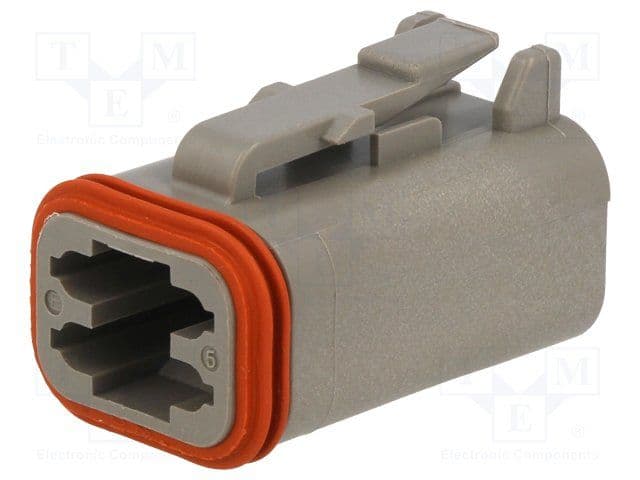

Product Images
