TE Connectivity
FSM4JH
Alcoswitch, Switch, Pushbutton, Tactile, SPST, 50mA, Thru Hole, 6mm | TE Connectivity FSM4JH
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity FSM4JH technical specifications.
General
| Actuator Length | 1.4mm |
| Actuator Material | Resin, Polyacetal |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 50mA |
| ELV | Compliant |
| Illumination Type | Non-Illuminated, Illuminated |
| Material | Nylon |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -35°C |
| Mount | Through Hole |
| Operating Force | 160gf |
| Package Quantity | 750 |
| Packaging | Loose Piece |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | FSMJ |
| Switch Function | Off-Mom |
| Switch Travel | 0.25mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Type | Switch |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity FSM4JH Datasheet
Download the complete datasheet for TE Connectivity FSM4JH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

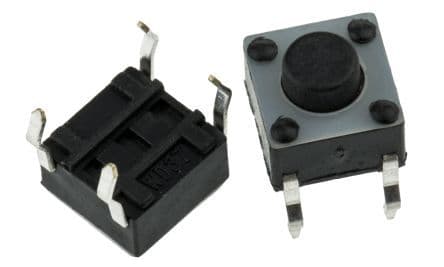

Product Images
