PackageAxial
Resistance18R
Voltage Rating500V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity H4P18RFZA technical specifications.
General
Package/Case
Axial
Diameter
3.7mm
ELV
Compliant
Length
10mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Package Quantity
250
Packaging
Bulk
Resistance
18R
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
Holco, Holsworthy
Termination
Axial
Tolerance
1%
Voltage Rating
500V
Weight
0.01411oz
Compliance
RoHS
Compliant
Datasheet
TE Connectivity H4P18RFZA Datasheet
Download the complete datasheet for TE Connectivity H4P18RFZA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

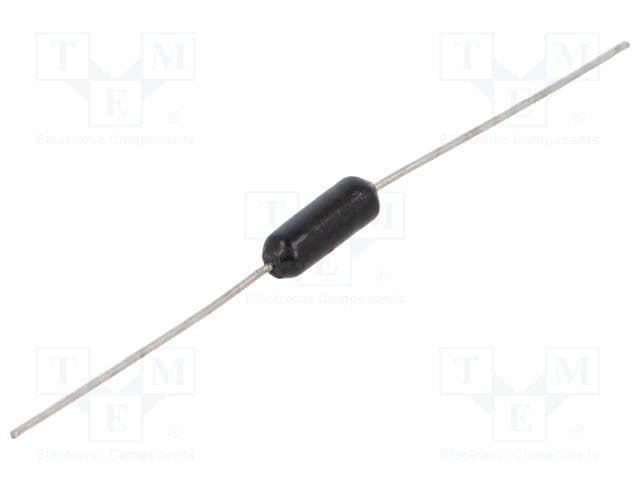

Product Images
