TE Connectivity
LEV100A5ANH
Electromechanical Relay 24VDC 96Ohm 100A SPST-NO-DM(57.96x40.77)mm Chassis Contactor Relay
MountingChassis Mount
Quick Jump:
Technical Specifications
TE Connectivity LEV100A5ANH technical specifications.
General
| Coil Current | 250mA |
| Coil Power | 6W |
| Coil Resistance | 96R |
| Coil Voltage (DC) | 24V |
| Height | 58mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 900V |
| Mount | Chassis Mount |
| Number of Poles | 1 |
| Operating Supply Voltage | 900V |
| Throw Configuration | SPST |
| Width | 46.3mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity LEV100A5ANH Datasheet
Download the complete datasheet for TE Connectivity LEV100A5ANH to view detailed technical specifications.
No datasheet is available for this part.

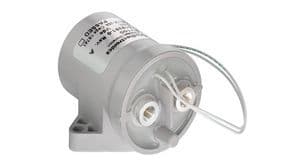

Product Images
