Current Rating10A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity PB114005 technical specifications.
General
Application(s)
POWER
Approvals
VDE
Coil Current
71.4mA
Coil Power
357mW
Coil Resistance
70R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
15mm
Height
20mm
Length
15mm
Life (Hours)
30000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Operate Time
10ms
Packaging
Rail/Tube
Relay Type
General Purpose
Release Time
20ms
RoHS Compliant
Yes
Series
PB, SCHRACK
Termination
PC Pin
Throw Configuration
SPDT
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity PB114005 Datasheet
Download the complete datasheet for TE Connectivity PB114005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

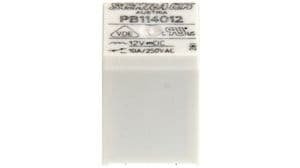

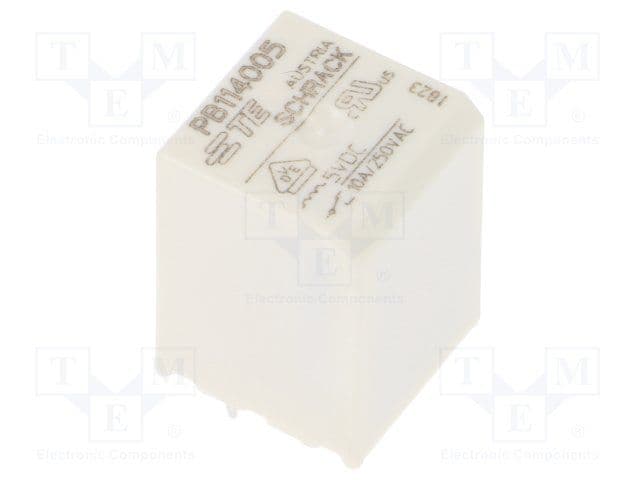

Product Images
