SPST-NO power relay with a 24VDC coil voltage and 25A contact current rating. Features a 277VAC contact voltage rating and 250VAC maximum voltage rating. Coil power is 1W with 37.5mA coil current and 640 Ohm coil resistance. Contact material is Tin, Silver. Dimensions are 30.4mm (length) x 16mm (depth) x 36.5mm (height). Mounts via PCB through-hole termination. RoHS and ELV compliant.
Current Rating25A
MountingThrough Hole, PCB
Power900mW
Quick Jump:
Technical Specifications
TE Connectivity PCF-124D2M,000 technical specifications.
General
Application(s)
POWER
Coil Current
37.5mA
Coil Power
1W
Coil Resistance
640R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
25A
Contact Material
Tin, Silver
Contact Voltage Rating (AC)
277V
Current Rating
25A
Depth
16mm
ELV
Compliant
Height
1.043inch
Lead Free
Lead Free
Length
30.4mm
Max Operating Temperature
55°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Mount
Through Hole, PCB
Packaging
Rail/Tube
Power Consumption
900mW
Relay Type
General Purpose
RoHS Compliant
Yes
Series
PCF, OEG
Termination
PCB
Throw Configuration
SPST
DC Rated Voltage
24V
Weight
28g
Width
0.63inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity PCF-124D2M,000 Datasheet
Download the complete datasheet for TE Connectivity PCF-124D2M,000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

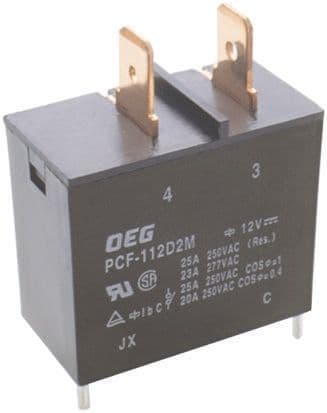

Product Images
