TE Connectivity
SDT-SS-112DM.000
TE CONNECTIVITY / OEG SDT-SS-112DM,000 General Purpose Relay, SDT-R Series, Power, Non Latching, SPST-NO, 12 VDC, 10 A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity SDT-SS-112DM.000 technical specifications.
General
Coil Current
44.4mA
Coil Power
600mW
Coil Resistance
267R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Tin, Silver
Contact Voltage Rating (DC)
30V
Height
0.984inch
Length
0.945inch
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole
Operate Time
15ms
Package Quantity
25
Packaging
Tray
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
8ms
RoHS Compliant
No
Series
SDT, OEG
Termination
PCB
Throw Configuration
SPST
Weight
0.388oz
Width
10mm
Compliance
RoHS
Not Compliant
Datasheet
TE Connectivity SDT-SS-112DM.000 Datasheet
Download the complete datasheet for TE Connectivity SDT-SS-112DM.000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

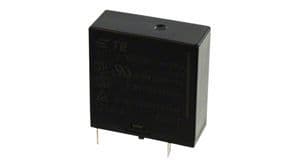

Product Images
