Wirewound resistor, 5kΩ resistance with 0.1% tolerance. Features a 250mW power rating and a 300V DC rated voltage. Axial leaded, through-hole mount design with a 9.53mm body length and 4.75mm diameter. Operating temperature range from -55°C to 145°C. RoHS compliant.
PackageAxial
Resistance5kR
Voltage Rating300V
MountingAxial
Quick Jump:
Technical Specifications
TE Connectivity UPW25B5K0V technical specifications.
General
Package/Case
Axial
Diameter
4.75mm
ELV
Compliant
Lead Free
Lead Free
Lead Length
25mm
Length
9.53mm
Max Operating Temperature
145°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Axial
Number of Resistors
1
Number of Terminations
2
Operating Supply Voltage
300V
Package Quantity
100
Packaging
Loose Piece
Reach SVHC Compliant
No
Resistance
5kR
Resistance Tolerance
0.1%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
UPW, Neohm
Technology
WIRE WOUND
Termination
Axial
Tolerance
0.1%
Voltage Rating
300V
DC Rated Voltage
300V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity UPW25B5K0V Datasheet
Download the complete datasheet for TE Connectivity UPW25B5K0V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

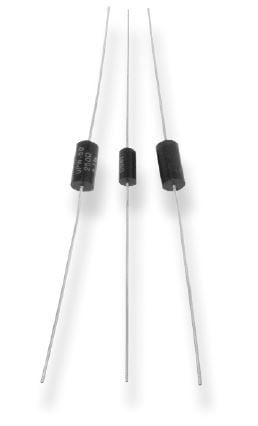

Product Images
