16-bit microcontroller featuring a 16MHz core, 1KB FLASH memory, and 128B SRAM. Integrated peripherals include a timer, comparator, UART, I2C, SPI, IrDA, USART, LIN, and SCI interfaces. This lead-free, RoHS-compliant device operates from 1.8V to 3.6V, with a temperature range of -40°C to 85°C, and is housed in a 20-TSSOP package. It offers 16 programmable I/O pins and includes a watchdog timer.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2101TPW technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Density
1KB
Frequency
16MHz
Interface
UART, I2C, SPI, IrDA, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
16
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
70
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
128B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Termination
SMD/SMT
Watchdog Timer
Yes
Weight
0.002716oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2101TPW Datasheet
Download the complete datasheet for Texas Instruments MSP430F2101TPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

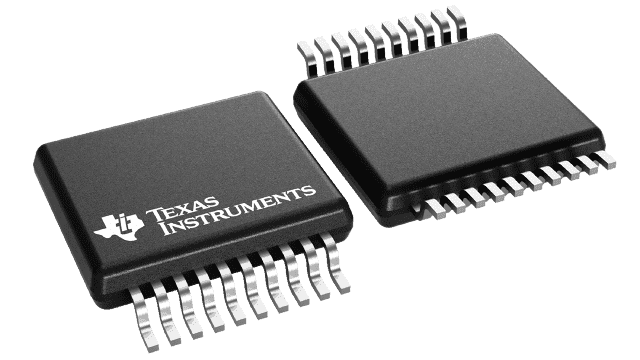

Product Images
