General purpose optocoupler featuring a single channel with logic output. This component offers a 2.5kV isolation voltage and a maximum collector current of 8mA. With a 1 Mbps data rate and a 24% current transfer ratio, it operates across a wide temperature range from -55°C to 100°C. The PDIP package facilitates through-hole mounting.
PackagePDIP
Voltage5V
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Toshiba 6N136(F) technical specifications.
General
Package/Case
PDIP
Current Transfer Ratio
24%
Fall Time
0.8us
Forward Current
25mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Max Collector Current
8mA
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
15V
Max Power Dissipation
100mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
8mA
Output Voltage
15V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
100mW
Radiation Hardening
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Toshiba 6N136(F) Datasheet
Download the complete datasheet for Toshiba 6N136(F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

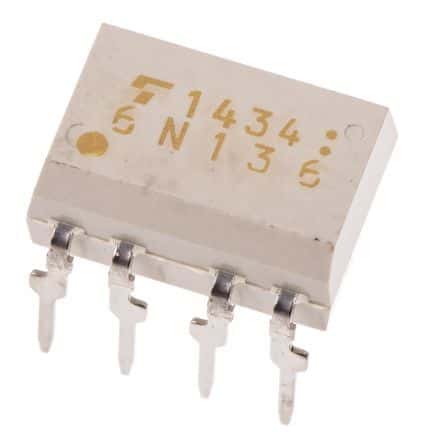

Product Images
