Toshiba
TLP127(U,F)
Optocoupler - Transistor Output, NPN-OUTPUT DC-INPUT OPTOCOUPLER,1-CHANNEL,2.5KV ISOLATION,SO
PackageSOP
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Toshiba TLP127(U,F) technical specifications.
General
Package/Case
SOP
Collector Emitter Saturation Voltage
1.2V
Collector Emitter Voltage (VCEO)
300V
Current Transfer Ratio
4000%
Fall Time
15us
Forward Current
50mA
Input Current
10mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Toshiba TLP127(U,F) Datasheet
Download the complete datasheet for Toshiba TLP127(U,F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

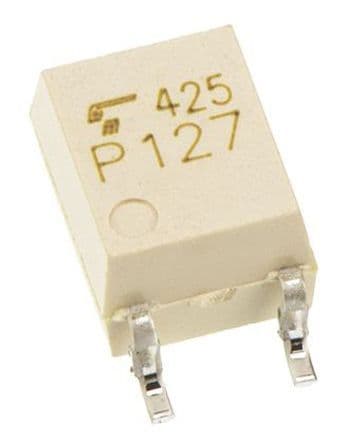

Product Images
