Technical Specifications
Toshiba TLP2662(F) technical specifications.
General
| Package/Case | DIP |
| Direction | Unidirectional |
| Fall Time | 0.003us |
| Input Type | DC |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 85mW |
| Mount | Through Hole |
| Number of Channels | 2 |
| Output Current per Channel | 25mA |
| Packaging | Rail/Tube |
| Propagation Delay | 75ns |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP2662(F) Datasheet
Download the complete datasheet for Toshiba TLP2662(F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

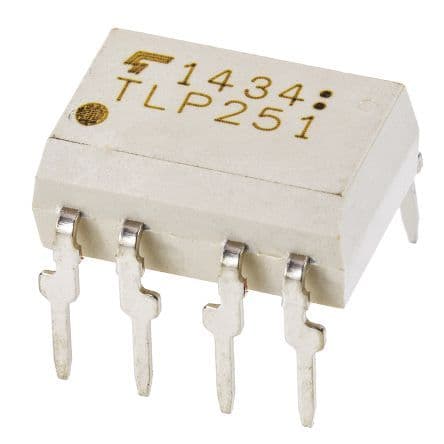

Product Images
