The Toshiba TLP620-2(F) is a 2-channel optocoupler with a maximum collector-emitter voltage of 55V and a maximum forward current of 50mA. It has a high current transfer ratio of 600% and a low collector-emitter saturation voltage of 400mV. The device is packaged in a lead-free plastic DIP-8 package and is suitable for use in through-hole mounting applications. The TLP620-2(F) has a maximum operating temperature of 85°C and a minimum operating temperature of -55°C. It is RoHS compliant and suitable for use in general optoelectronics and display applications.
PackagePDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Toshiba TLP620-2(F) technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 55V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 600% |
| Fall Time | 3us |
| Forward Current | 50mA |
| Input Type | AC |
| Isolation Voltage | 5kV |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 55V |
| Max Power Dissipation | 150mW |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current per Channel | 50mA |
| Packaging | Rail/Tube |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Toshiba TLP620-2(F) Datasheet
Download the complete datasheet for Toshiba TLP620-2(F) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

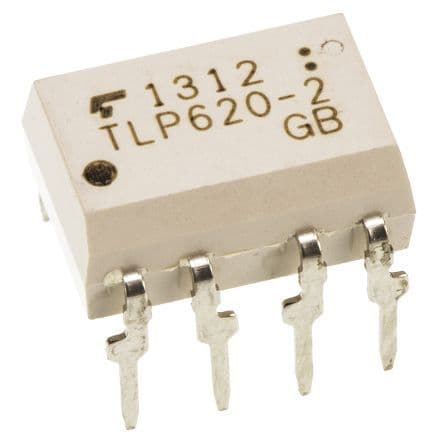

Product Images
