Technical Specifications
Toshiba TLP785(D4GR-T6FC technical specifications.
General
Package/Case
PDIP
Collector Emitter Voltage (VCEO)
80V
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
240mW
Packaging
Tape and Reel
Compliance
RoHS
Compliant
Datasheet
Toshiba TLP785(D4GR-T6FC Datasheet
Download the complete datasheet for Toshiba TLP785(D4GR-T6FC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

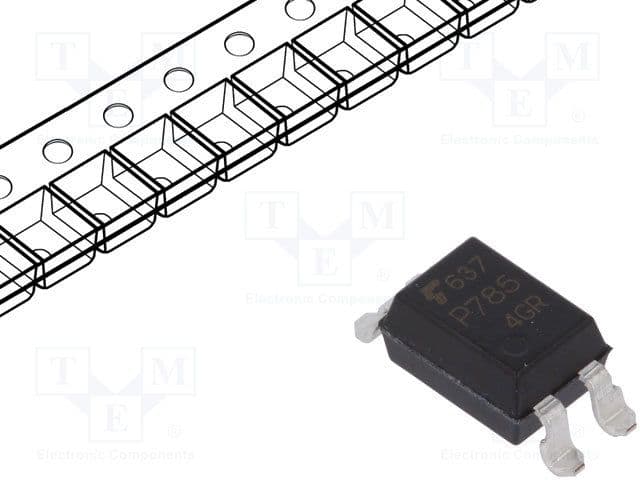

Product Images
