MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Toshiba TPN1600ANH,L1Q technical specifications.
General
Continuous Drain Current (ID)
17A
Drain to Source Resistance
13mR
Drain to Source Voltage (Vdss)
100V
Fall Time
6.2ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
1.6nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Mount
Surface Mount
Number of Channels
1
Package Quantity
5000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Radiation Hardening
No
Rds On Max
16mR
Turn-Off Delay Time
21ns
Turn-On Delay Time
14ns
Compliance
RoHS
Compliant
Datasheet
Toshiba TPN1600ANH,L1Q Datasheet
Download the complete datasheet for Toshiba TPN1600ANH,L1Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

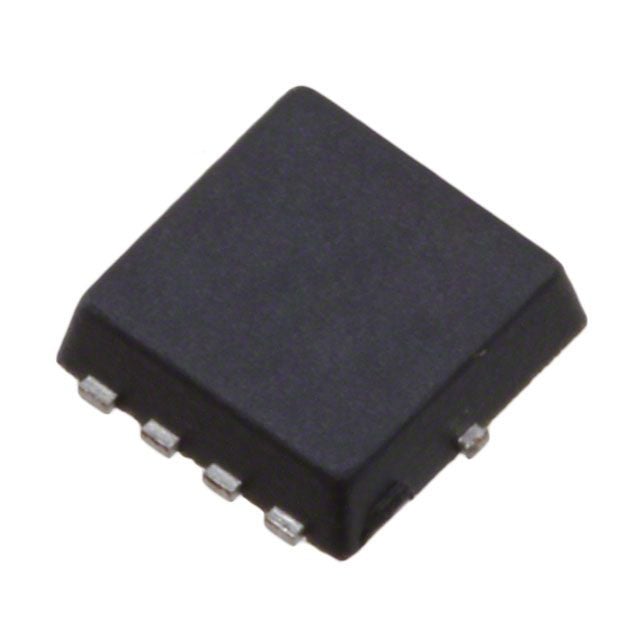

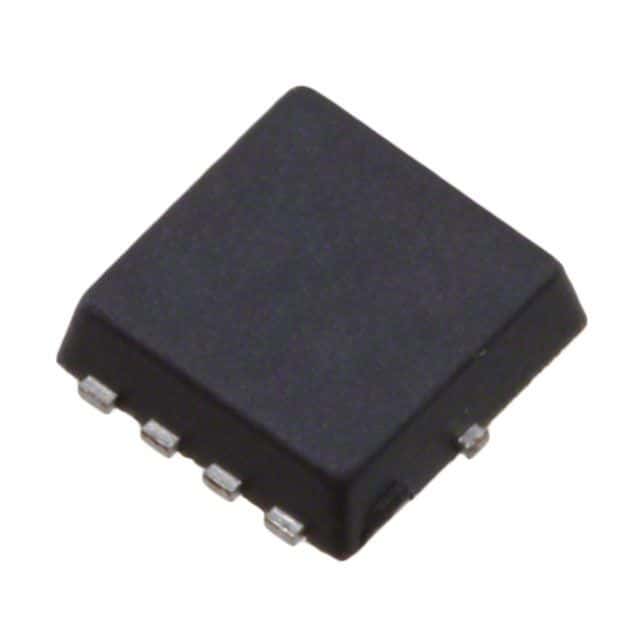

Product Images
