MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Toshiba TPN8R903NL,LQ technical specifications.
General
Continuous Drain Current (ID)
20A
Drain to Source Resistance
10.2mR
Drain to Source Voltage (Vdss)
30V
Fall Time
2.1ns
Gate to Source Voltage (Vgs)
20V
Input Capacitance
820pF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Mount
Surface Mount
Number of Channels
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Radiation Hardening
No
Rds On Max
8.9mR
Turn-Off Delay Time
14ns
Turn-On Delay Time
8.3ns
Compliance
RoHS
Compliant
Datasheet
Toshiba TPN8R903NL,LQ Datasheet
Download the complete datasheet for Toshiba TPN8R903NL,LQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

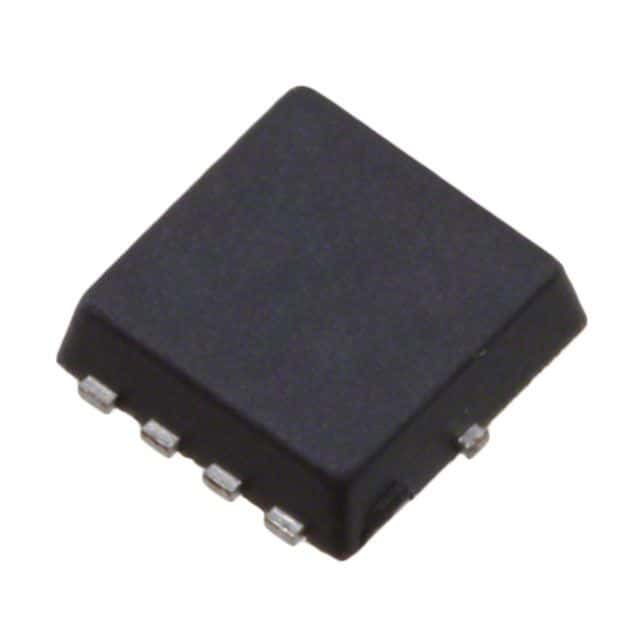

Product Images
