This dual output DC-DC converter from Traco Power features a DIP package and provides two 12V outputs with a maximum current of 125mA each. The converter operates within a temperature range of -40°C to 85°C and is RoHS compliant. It has a nominal input voltage of 12V and a maximum input voltage of 18V. The device is not SVHC compliant and has a weight of 4.5g.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TDR3-1222WI technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 125mA |
| Current - Output 2 | 125mA |
| Depth | 18.9mm |
| Efficiency | 82% |
| Height | 8.7mm |
| Isolation Voltage | 1.5kV |
| Length | 18.9mm |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 18V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 125mA |
| Max Output Power | 3W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Number of Outputs | 2 |
| Output Current | 125mA |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TDR 3WI |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 4.5g |
| Width | 12.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TDR3-1222WI Datasheet
Download the complete datasheet for Traco Power TDR3-1222WI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

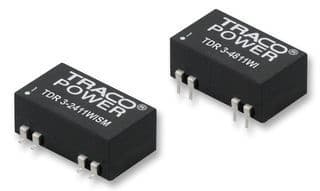

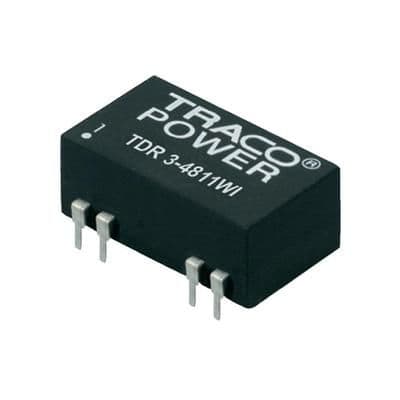

Product Images
