PackageModule
MountingThrough Hole
Power5W
Quick Jump:
Technical Specifications

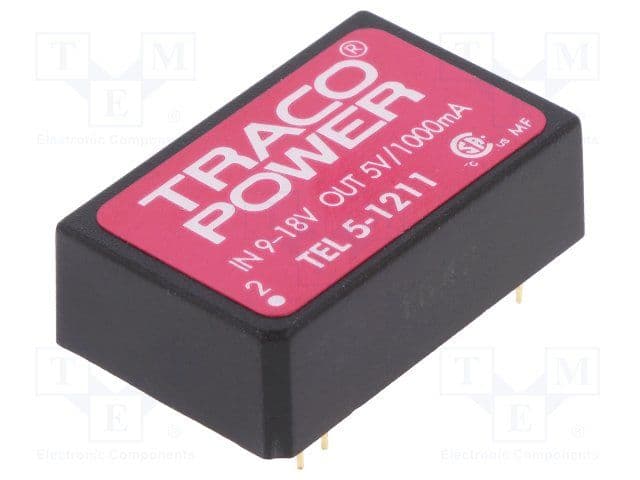

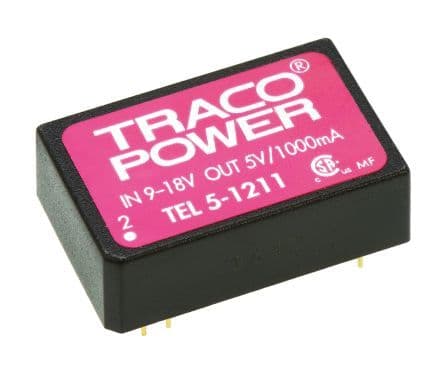

Traco Power TEL5-1211 technical specifications.
General
Package/Case
Module
Current - Output 1
1A
Depth
32mm
Efficiency
81%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Power
5W
Max Power Dissipation
5W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1A
Output Power
5W
Output Voltage
5V
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TEL 5 (5W)
Voltage - Output 1
5V
Weight
17g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEL5-1211 Datasheet
Download the complete datasheet for Traco Power TEL5-1211 to view detailed technical specifications.
