Technical Specifications
Traco Power TEN12-4823 technical specifications.
General
Current - Output 2
400mA
Depth
50.8mm
Efficiency
84%
Height
10.2mm
Isolation Voltage
1.5kV
Length
25.4mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Power
12W
Mount
Through Hole
Nominal Input Voltage
48V
Nominal Output Voltage
-15V
Number of Outputs
2
Output Current
400mA
Output Voltage
15V
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
TEN 12
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN12-4823 Datasheet
Download the complete datasheet for Traco Power TEN12-4823 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

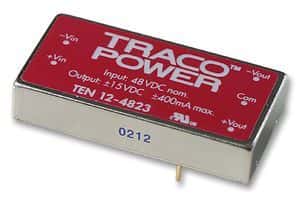

Product Images
