Isolated DC/DC converter with 20W maximum output power and 15V output voltage. Features dual outputs, each delivering 665mA. Operates with an input voltage range of 18-75 VDC, nominal 48V. Achieves 88% efficiency and provides 1.5kV isolation. Through-hole mounting design with dimensions of 50.8mm (L) x 25.4mm (W) x 10mm (H). Extended operating temperature range from -40°C to 85°C.
MountingThrough Hole
Power20W
Quick Jump:
Technical Specifications
Traco Power TEN20-4823WIN technical specifications.
General
Current - Output 1
665mA
Current - Output 2
665mA
Depth
25.4mm
Efficiency
88%
Height
10mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
50.8mm
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
665mA
Max Output Power
20W
Mount
Through Hole
Nominal Input Voltage
48V
Number of Outputs
2
Output Current
665mA
Output Power
20W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEN 20WIN
Voltage - Output 1
15V
Voltage - Output 2
-15V
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN20-4823WIN Datasheet
Download the complete datasheet for Traco Power TEN20-4823WIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

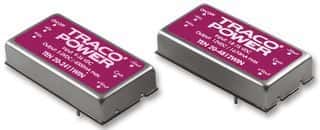

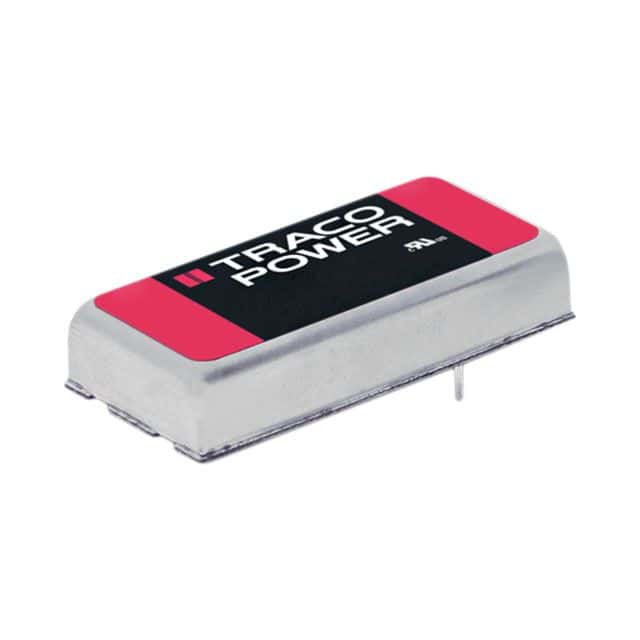

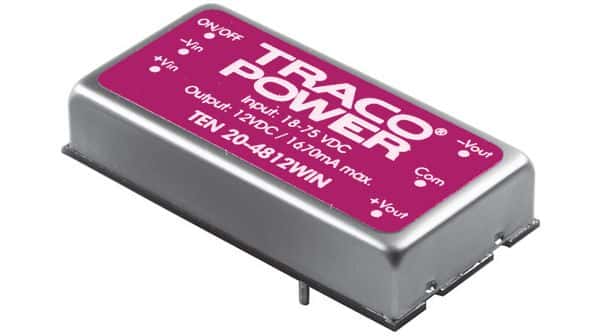

Product Images
