PackageMetal
MountingThrough Hole
Quick Jump:
Technical Specifications

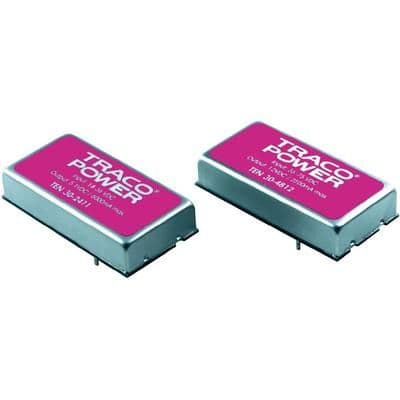

Traco Power TEN30-1223 technical specifications.
General
| Package/Case | Metal |
| Current - Output 1 | 1A |
| Current - Output 2 | 1A |
| Depth | 50.8mm |
| Efficiency | 87% |
| Height | 10.2mm |
| Isolation Voltage | 1.5kV |
| Length | 50.8mm |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 18V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Power | 30W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Number of Outputs | 2 |
| Output Current | 1A |
| Output Voltage | 15V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 30 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 31g |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEN30-1223 Datasheet
Download the complete datasheet for Traco Power TEN30-1223 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
