PackageModule
MountingThrough Hole
Power6W
Quick Jump:
Technical Specifications
Traco Power TEN5-4811 technical specifications.
General
Package/Case
Module
Current - Output 1
1A
Depth
20mm
Efficiency
83%
Features
SCP
Isolation
Isolated
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage
75V
Min Input Voltage
36V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Power Dissipation
5W
Mount
Through Hole
Nominal Input Voltage
48V
Number of Outputs
1
Output Current
1A
Output Power
6W
Output Voltage
5V
Radiation Hardening
No
RoHS Compliant
Yes
Series
TEN 5 (6W)
Voltage - Output 1
5V
Weight
16.9g
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN5-4811 Datasheet
Download the complete datasheet for Traco Power TEN5-4811 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

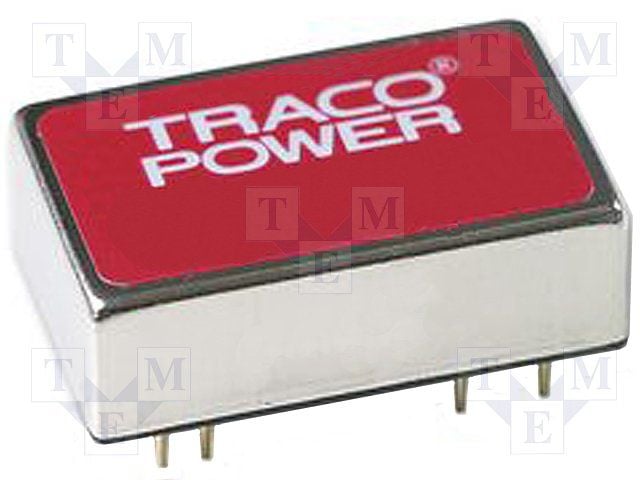

Product Images
