Traco Power
TEN6-2422WIN
TRACOPOWER TEN 6-2422WIN Isolated Board Mount DC/DC Converter, 4:1 Input, Through Hole, 6W, 12V, 250mA, -12V, 250mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TEN6-2422WIN technical specifications.
General
| Current - Output 1 | 250mA |
| Current - Output 2 | 250mA |
| Depth | 31.8mm |
| Efficiency | 84% |
| Features | OCP, SCP |
| Height | 10.2mm |
| Isolation Voltage | 1.5kV |
| Length | 31.8mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 250mA |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 6WIN (6W) |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 4.8g |
| Width | 20.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEN6-2422WIN Datasheet
Download the complete datasheet for Traco Power TEN6-2422WIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

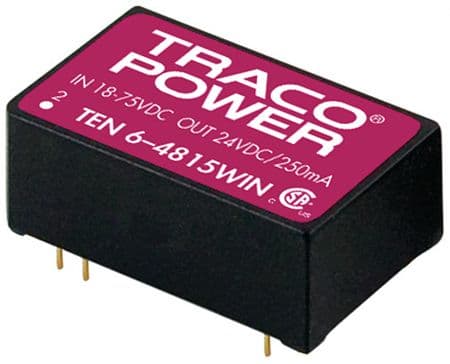

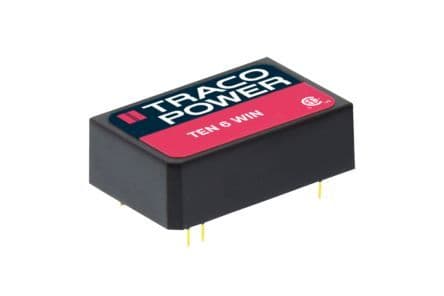

Product Images
