Technical Specifications
Traco Power TEN60-4811WIN technical specifications.
General
| Current - Output 1 | 12A |
| Depth | 50.8mm |
| Efficiency | 92% |
| Height | 10.2mm |
| Isolation Voltage | 1.5kV |
| Length | 50.8mm |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 75V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Output Power | 60W |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 12A |
| Output Voltage | 5V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TEN 60WIN |
| Voltage - Output 1 | 5V |
| Weight | 33g |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Traco Power TEN60-4811WIN Datasheet
Download the complete datasheet for Traco Power TEN60-4811WIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

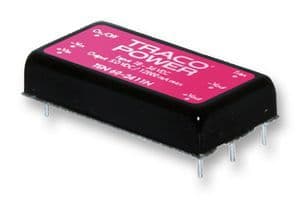

Product Images
