Traco Power
TEN8-1223
TRACOPOWER TEN 8-1223 Isolated Board Mount DC/DC Converter, Fixed, 2 Output, 9 V, 18 V, 8 W, 15 V
MountingThrough Hole
Power8W
Quick Jump:
Technical Specifications
Traco Power TEN8-1223 technical specifications.
General
Current - Output 1
265mA
Current - Output 2
265mA
Depth
20.3mm
Efficiency
85%
Features
OCP, SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
265mA
Max Output Power
8W
Max Power Dissipation
8W
Mount
Through Hole
Nominal Input Voltage
12V
Number of Outputs
2
Output Current
265mA
Output Power
8W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TEN 8 (8W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
17g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TEN8-1223 Datasheet
Download the complete datasheet for Traco Power TEN8-1223 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

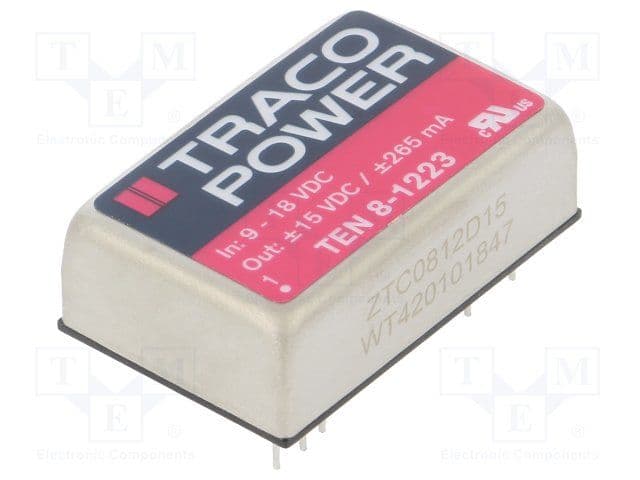

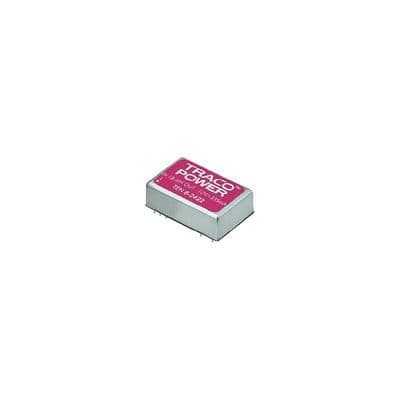

Product Images
