10W DC/DC converter module with 2.5V nominal output voltage and 3A maximum output current. Features a wide input voltage range of 18V to 36V, with a nominal input of 24V. Offers 1.5kV isolation voltage and 83% efficiency. Packaged in a through-hole module with dimensions of 32mm (L) x 20.3mm (W) x 10.2mm (H). Operates from -40°C to 71°C and is RoHS compliant.
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power THD10-2409 technical specifications.
General
Package/Case
Module
Depth
31.8mm
Efficiency
83%
Height
10.2mm
Isolation Voltage
1.5kV
Length
32mm
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
71°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
10W
Mount
Through Hole
Nominal Input Voltage
24V
Nominal Output Voltage
2.5V
Number of Outputs
1
Operating Supply Voltage
24V
Output Current
3A
Output Voltage
2.5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
THD 10
Weight
17.3g
Width
20.3mm
Compliance
RoHS
Compliant
Datasheet
Traco Power THD10-2409 Datasheet
Download the complete datasheet for Traco Power THD10-2409 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

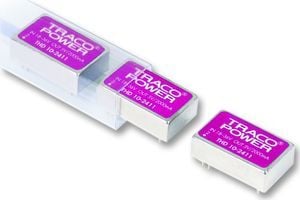

Product Images
