Technical Specifications
Traco Power TMP10215 technical specifications.
General
Approvals
CE, cULus, cURus, CB
Package/Case
Module
Current - Output 1
300mA
Current - Output 2
300mA
Current - Output 3
-300mA
Depth
64mm
Efficiency
77%
Height
19mm
Length
64mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Output Power
10W
Max Power Dissipation
9W
Number of Outputs
2
Output Current
300mA
Output Voltage
15V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMP (10W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Voltage - Output 3
-15V
Weight
92g
Width
45mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMP10215 Datasheet
Download the complete datasheet for Traco Power TMP10215 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

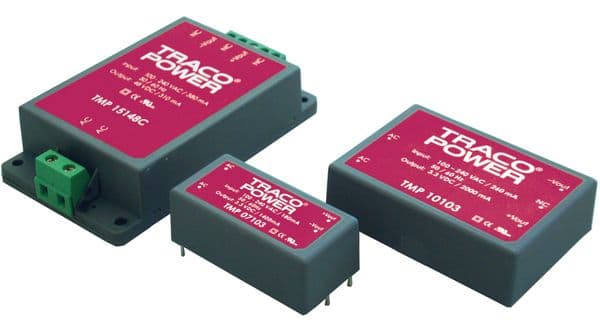

Product Images
