Technical Specifications
Traco Power TMP30148 technical specifications.
General
Approvals
CE, cULus, cURus, CB
Package/Case
Module
Current - Output 1
625mA
Depth
88.9mm
Efficiency
80%
Height
21.5mm
Length
88.9mm
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Current
625mA
Max Output Power
30W
Max Power Dissipation
30W
Mount
Through Hole, PCB
Nominal Output Voltage
48V
Number of Outputs
1
Operating Supply Voltage
230V
Output Current
625mA
Output Voltage
48V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMP (30W)
Voltage - Output 1
48V
Weight
177g
Width
63.5mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMP30148 Datasheet
Download the complete datasheet for Traco Power TMP30148 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

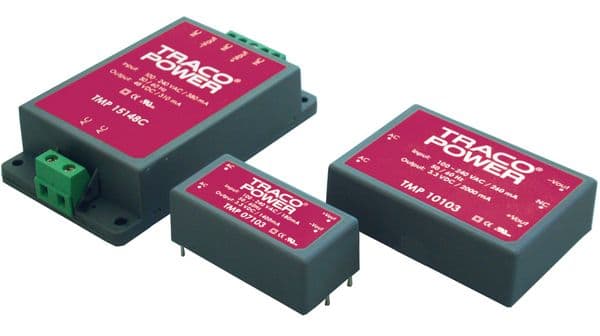

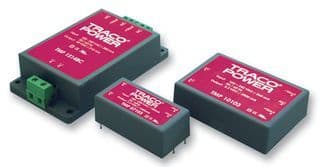

Product Images
