Traco Power
TMP30212
TRACOPOWER TMP 30212 AC/DC PCB Mount Power Supply, Class II, Fixed, 12V, 1.3A, -12V, 1.3A
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TMP30212 technical specifications.
General
Approvals
CE, cULus, cURus, CB
Package/Case
Module
Current - Output 1
1.3A
Current - Output 2
1.3A
Depth
88.9mm
Efficiency
80%
Height
21.5mm
Length
88.9mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Power
30W
Max Power Dissipation
31W
Mount
Through Hole
Number of Outputs
2
Output Current
1.3A
Output Voltage
12V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMP (30W)
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
177g
Width
63.5mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMP30212 Datasheet
Download the complete datasheet for Traco Power TMP30212 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

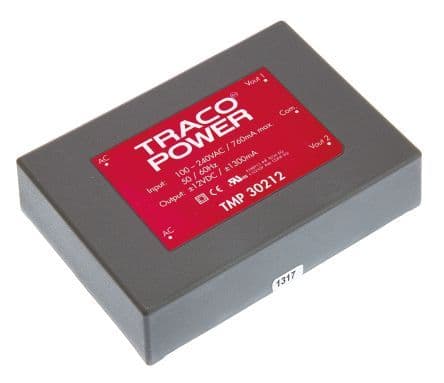

Product Images
