Technical Specifications

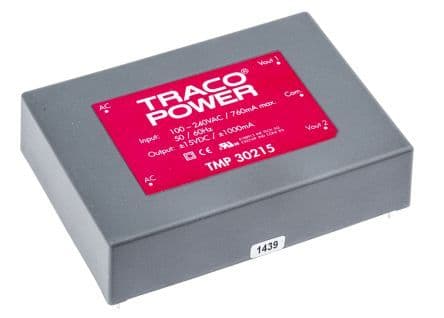

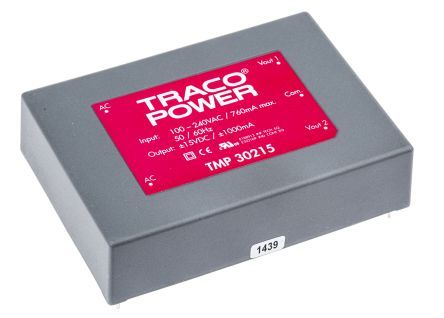

Traco Power TMP30215 technical specifications.
General
Approvals
CE, cULus, cURus, CB
Package/Case
Module
Current - Output 1
1A
Current - Output 2
1A
Depth
88.9mm
Efficiency
80%
Height
21.5mm
Length
88.9mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Power
30W
Max Power Dissipation
30W
Number of Outputs
2
Output Current
1A
Output Voltage
15V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMP (30W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
177g
Width
63.5mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMP30215 Datasheet
Download the complete datasheet for Traco Power TMP30215 to view detailed technical specifications.
