Traco Power
TMP30515
TRACOPOWER - TMP 30515 - AC/DC-Netzteil, Leiterplattenmontage, Klasse II, fest, 5V, 3A, 15V, 500mA, -15V, 500mA
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Traco Power TMP30515 technical specifications.
General
Approvals
CE, cULus, cURus, CB
Package/Case
Module
Current - Output 1
3A
Current - Output 2
500mA
Current - Output 3
500mA
Depth
88.9mm
Efficiency
76%
Height
21.5mm
Length
88.9mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Output Power
30W
Max Power Dissipation
29W
Mount
Through Hole
Number of Outputs
3
Output Current
3A
Output Voltage
5V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMP (30W)
Voltage - Output 1
5V
Voltage - Output 2
15V
Voltage - Output 3
-15V
Weight
177g
Width
63.5mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMP30515 Datasheet
Download the complete datasheet for Traco Power TMP30515 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

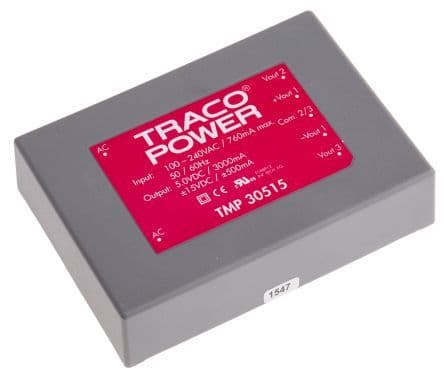

Product Images
