PackageModule
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Traco Power TMR1210 technical specifications.
General
Package/Case
Module
Current - Output 1
500mA
Depth
21.8mm
Efficiency
77%
Features
SCP
Height
11.1mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
21.8mm
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2W
Max Power Dissipation
1.7W
Mount
Through Hole
Nominal Input Voltage
12V
Number of Outputs
1
Output Current
500mA
Output Power
2W
Output Voltage
3.3V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMR 2 (2W)
Voltage - Output 1
3.3V
Weight
4.8g
Width
9.2mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR1210 Datasheet
Download the complete datasheet for Traco Power TMR1210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

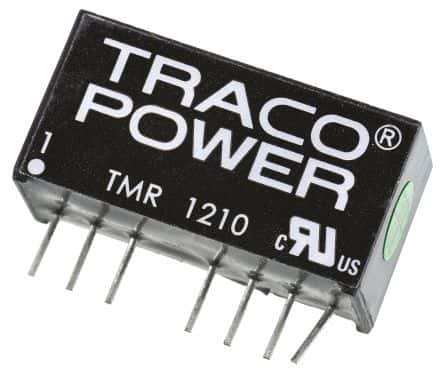

Product Images
